Gravure printing plays a central role in achieving stable, repeatable graphics for large volumes of reusable shopping bags. When evaluating printing options for reusable laminated shopping bags, one often focuses on price or color count first. In practice, many quality issues, such as color variation between orders, uneven ink coverage on film surfaces, or unstable repeat results, come from the printing method rather than the material itself.
This article explains what gravure printing is, how it works in production, and why it is commonly used for custom reusable shopping bags that require stable color, repeatability, and scale.

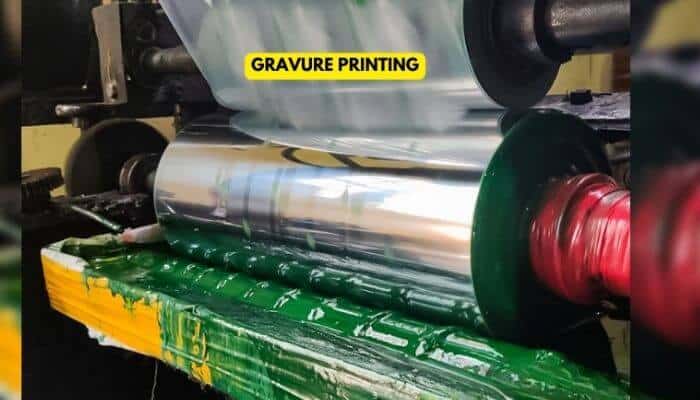

What Is Gravure Printing?
Gravure printing, also known as rotogravure printing, uses engraved metal cylinders to transfer liquid ink onto a substrate in a continuous, roll-to-roll process. The method relies on three technical elements working together: an engraved cylinder, low-viscosity liquid ink, and continuous web printing. Instead of raised plates, the cylinder surface contains recessed cells that hold a controlled volume of ink and release it onto the substrate under pressure.
In reusable shopping bag manufacturing, gravure printing is selected for stability rather than flexibility. Once the cylinder engraving and ink settings are finalized, the printing result remains highly uniform from the first roll to the last. This consistency makes gravure especially suitable for laminated bags, where film surfaces often expose color variation and uneven ink coverage when other printing methods are used.
Because the ink sits inside engraved cells rather than on raised surfaces, gravure printing offers a high level of control over ink density. Deeper cells carry more ink, while shallower cells reduce coverage. This physical relationship between cell depth and ink volume is why gravure excels at producing smooth solids, consistent gradients, and sharp edges on laminated and non-absorbent materials.
The Evolution of Gravure Printing
Gravure printing was originally developed for high-quality image reproduction in magazines, catalogs, and decorative prints. Early systems relied on mechanical engraving, which limited precision and made cylinder preparation time-consuming. Despite these limitations, gravure gained early adoption because it delivered smoother tonal transitions than other methods available at the time.
The introduction of electronic and laser engraving transformed gravure printing into a modern industrial process. Digital control over cell geometry improved repeatability and reduced variation between cylinders. At the same time, advances in ink chemistry and drying technology expanded gravure’s compatibility beyond paper to films, foils, and laminated materials.
As global demand for flexible packaging and reusable shopping bags increased, gravure printing naturally shifted into large-scale manufacturing environments. Today, it remains a preferred method for applications where durability, color stability, and repeatable output across multiple orders are more critical than short-run flexibility.

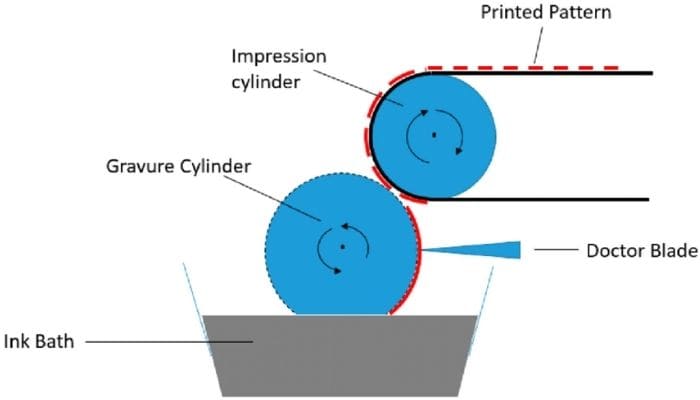

The Core Components of the Gravure Printing Process
Gravure printing relies on a tightly integrated system where each component directly affects ink transfer, image clarity, and run-to-run consistency. Rather than viewing gravure as a single machine, it is more accurate to see it as a controlled ink-delivery system. Each part influences how much ink reaches the surface, how evenly it spreads, and how well it cures before downstream bag-making processes begin.
Engraved Cylinder
The engraved cylinder defines the image quality in gravure printing. Manufacturers engrave microscopic cells into the cylinder surface, and these cells determine how much ink transfers to the substrate. Cell depth, shape, and distribution directly control color density, tonal range, and edge sharpness.
A well-engraved cylinder ensures that solids remain even and gradients stay smooth across every production run. Once created, the same cylinder can reproduce identical results months or even years later, which supports long-term brand consistency.
Ink Fountain & Doctor Blade
The ink fountain supplies low-viscosity liquid ink to the rotating cylinder, while the doctor blade removes excess ink from the cylinder surface. This interaction ensures that ink remains only inside the engraved cells and does not flood the non-image areas.
Doctor blade adjustment plays a major role in print stability. Improper blade pressure can leave residual ink on the cylinder surface or strip ink unevenly from the cells. In laminated bag production, this control step helps prevent streaking, mottling, and inconsistent solid coverage, especially on wide-format prints.
Substrate & Impression Roller
The substrate passes between the engraved cylinder and the impression roller, which applies the pressure needed to transfer ink from the cells onto the material surface. The impression roller must maintain uniform pressure across the full print width to avoid density variation.
Laminated pp woven, non-woven, and rpet materials respond differently to pressure due to their surface structure and stiffness. Gravure systems allow operators to fine-tune contact pressure so ink releases cleanly from the cells without crushing the substrate or distorting the print.
Drying System
The drying system removes solvents from the ink immediately after transfer, stabilizing the printed image before the material advances to the next station. Effective drying prevents ink smearing, blocking, or set-off during winding and later bag conversion.
For reusable shopping bags, proper drying becomes especially important because printed materials often undergo cutting, folding, sewing, or lamination after printing. A well-calibrated drying system ensures the ink bonds securely to the surface and maintains durability through downstream manufacturing and repeated handling.
How Does Gravure Printing Work? Step-by-Step Guide
Gravure printing operates on a mechanically defined ink-transfer principle. Instead of adjusting ink delivery during production, the process fixes ink volume, transfer behavior, and drying conditions through physical design and controlled parameters. Once the system reaches a stable state, it delivers highly consistent results across long, continuous runs, which is why gravure performs reliably in large-scale reusable shopping bag production.
Cylinder Engraving
Cylinder engraving establishes the physical limits of ink delivery before printing begins. During this stage, the final artwork is converted into recessed cells engraved into the cylinder surface. Modern electronic or laser engraving controls cell depth, opening size, and geometry with high precision.
These engraved cells act as fixed ink reservoirs. Typical cell depths in packaging gravure range from approximately 20 to 50 microns, depending on the required color density and substrate type. Because cell geometry physically defines ink volume, gravure separates color control from press pressure or operator adjustment. Once engraving is complete, the cylinder becomes a permanent reference that enables repeatable results across long runs and future reorders.
Ink Filling and Excess Removal
During printing, low-viscosity liquid ink floods the rotating cylinder and fills all engraved cells. Gravure inks maintain relatively low viscosity—commonly within 15–25 seconds (DIN cup)—to ensure rapid and complete cell filling at production speeds.
Excess ink removal restores precision. By wiping ink from the cylinder surface while leaving ink inside the recessed cells, the process equalizes ink volume across the entire web width. This metering step stabilizes solid coverage and minimizes density variation, even when presses operate at speeds of 200–400 meters per minute, which are typical for industrial gravure packaging lines.
Ink Transfer to Substrate
Ink transfer occurs through controlled mechanical pressure rather than absorption. As the substrate contacts the engraved cylinder, applied pressure forces ink out of the cells and onto the surface in a uniform release.
This pressure-driven transfer explains gravure’s effectiveness on laminated and non-absorbent materials. Laminated pp woven, non-woven, and rpet substrates resist ink absorption and often expose limitations in plate-based printing methods. Gravure bypasses this constraint by delivering ink mechanically, which maintains stable color density and edge definition across wide-format reusable bag materials.
Drying, Curing, and Roll Collection
After transfer, solvent evaporation begins immediately. Controlled drying removes solvents from the ink film and stabilizes the printed surface before further handling. In gravure systems, drying typically reduces solvent content to safe handling levels within seconds, allowing continuous operation without smearing or blocking.
Once stabilized, the printed web rewinds under controlled tension into finished rolls. Proper drying and tension control at this stage prevent surface damage and ensure the material remains suitable for downstream processes such as lamination, cutting, sewing, and bag assembly. Because gravure fixes ink behavior early in the process, repeat production using the same setup delivers consistent results across multiple orders.
Advantages and Limitations of Gravure Printing
Gravure printing offers clear advantages, but it also comes with structural limitations that brands and sourcing teams must evaluate carefully. Understanding both sides helps avoid misalignment between printing technology, order volume, and long-term cost expectations.
Key Advantages of Gravure Printing
Gravure printing stands out in production environments where print consistency, large volumes, and long-term repeatability matter more than short-run flexibility. Its advantages come from a physically controlled ink-transfer system that minimizes variation across extended runs. When applied to laminated and non-absorbent materials, gravure delivers stable color density, smooth solids, and reliable results at industrial speeds, making it a practical choice for established, high-volume reusable shopping bag programs.
- Stable color consistency across long runs: Because engraved cells mechanically define ink volume, gravure maintains uniform color density from the first roll to the last.
- Excellent performance on laminated and non-absorbent materials: Gravure transfers ink through pressure rather than absorption. This makes it well-suited for polypropylene film, where smooth film surfaces often expose uneven coverage issues with other printing methods.
- High efficiency in large-volume production: Once the press reaches steady operation, gravure runs efficiently at high speeds without sacrificing print quality.
- Strong repeatability for long-term product lines: The engraved cylinder acts as a permanent physical reference. When reuse the same cylinder, they can reproduce nearly identical results months or years later, which supports brand consistency across seasonal or recurring orders.
- Smooth solids and controlled gradients: Gravure excels at rendering large solid areas and tonal transitions. Controlled cell geometry allows even ink laydown, reducing mottling and banding on wide-format bag graphics.
Practical Limitations of Gravure Printing
Gravure printing delivers strong performance in stable, high-volume production, but its structure also introduces clear limitations. These constraints do not relate to print quality, but to cost distribution, preparation requirements, and flexibility.
- Higher upfront setup cost: Cylinder engraving represents a significant initial investment compared to plate-based printing. Projects with short lifecycles or frequent design changes may struggle to justify this cost.
- Less flexibility for artwork revisions: Any change to the design typically requires a new engraved cylinder. This makes gravure less suitable for projects that involve frequent updates, multiple SKUs with small volumes, or rapid market testing.
- Inefficient for small production volumes: Gravure’s cost advantage appears only when production volume spreads the initial setup cost over large quantities. So, low-volume orders struggle to absorb setup costs effectively.
- Longer preparation and lead time: Cylinder engraving, proofing, and press setup require more preparation time than digital or some flexographic processes.

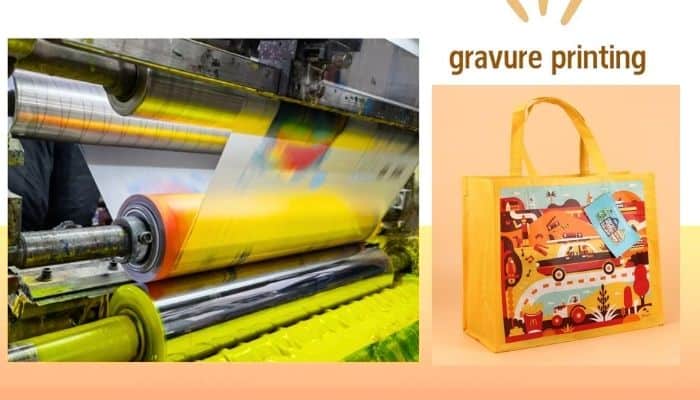

Why Gravure Printing Is Widely Used for Reusable Shopping Bags?
Gravure printing fits the production realities of custom shopping bags, where material structure, order volume, and visual consistency must align over time. In practice, two factors, ink control on laminated surfaces and cylinder-based repeatability, largely explain why manufacturers continue to rely on gravure for established bag programs.
Ink Control and Image Consistency
Reusable bags commonly use lamination to improve durability and moisture resistance. These laminated surfaces do not absorb ink, which makes uneven ink laydown more visible, especially in large solid color areas.
In typical production scenarios, bags with full-background colors or wide logo panels tend to reveal mottling, streaking, or density variation when printing methods rely on absorption or elastic plate contact. Gravure printing avoids this issue by fixing ink volume through engraved cell geometry. Each cell releases a defined amount of ink, which helps maintain even coverage across the entire print width.
This level of control becomes especially important when bags are produced in large quantities. Once the press reaches steady operation, gravure maintains stable color density from roll to roll, reducing the need for continuous adjustment and minimizing visual variation within the same order.
Cylinder-Based Printing and Repeatability
Reusable shopping bag projects rarely stop at a single production run. Many programs involve repeat orders placed months apart for replenishment, regional distribution, or seasonal use. In these cases, visual consistency across batches becomes a practical requirement rather than a design preference.
Gravure printing supports this need through its cylinder-based system. Once engraved, the cylinder serves as a fixed physical reference for image structure and ink volume. Under normal storage and handling conditions, gravure cylinders are typically retained and reused for several years, often three to five years or longer, depending on order frequency, storage environment, and surface wear.
So it is not necessary to reinterpret artwork, recalibrate ink density, or compensate for plate deformation when reusing the cylinder. The press reproduces the same visual result under the same operating conditions. Also, this repeatability shortens approval cycles and reduces the risk of visible differences between shipments.
Materials Commonly Printed with Gravure for Reusable Bags
Gravure printing delivers the most stable results on materials that support pressure-based ink transfer and controlled solvent drying. In reusable shopping bag production, this usually means synthetic or composite substrates rather than absorbent paper. The following material categories represent the most common and technically compatible options for gravure printing in large-scale bag programs.

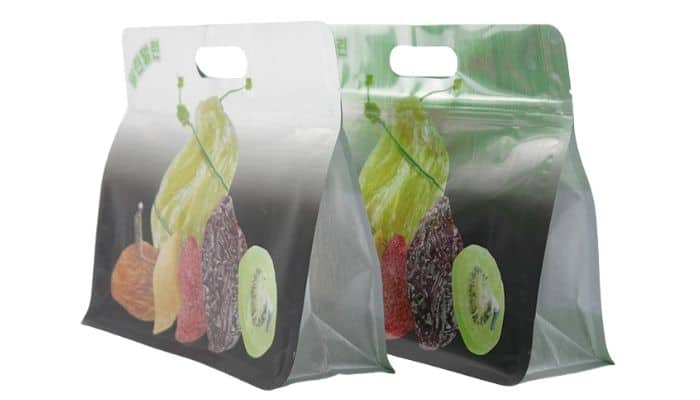

Laminated Film Substrates
Laminated film substrates are one of the most direct matches for gravure printing. These materials typically consist of plastic films such as BOPP or PET combined with a lamination layer that creates a smooth, sealed surface.
Because laminated films do not absorb ink, they tend to reveal inconsistencies in ink laydown more clearly than porous materials. Gravure addresses this challenge by fixing ink volume through engraved cell geometry, allowing even coverage across large solid areas and fine graphic details. This makes gravure particularly suitable for laminated shopping bags that require stable color density and clean visual presentation at scale.
In reusable shopping bag applications, laminated film substrates are often used as outer printable layers where visual clarity, abrasion resistance, and moisture protection are required. Gravure’s controlled ink release helps maintain these qualities consistently at industrial production speeds.
PP Woven
PP woven fabric is widely used for reusable shopping bags due to its strength, lightweight structure, and cost efficiency. However, the woven texture creates an uneven surface that can complicate printing when high visual consistency is required.
For gravure printing, PP woven materials are typically laminated before printing. The lamination smooths the surface and creates a continuous film layer that supports pressure-driven ink transfer. On laminated PP woven substrates, gravure produces cleaner edges, more uniform solids, and better color stability across wide bag panels. As a result, gravure is commonly used for laminated PP woven bags produced in large volumes with consistent branding requirements.
Non-Woven Fabric (and rPET)
Non-woven fabrics and rPET-based materials are popular choices for reusable shopping bags, particularly for projects with sustainability or recycled-content goals. These materials often show greater variation in surface texture and base color, which can affect print appearance if not managed carefully.
When laminated, non-woven and rPET substrates become more suitable for gravure printing. The laminated surface supports controlled ink release, helping maintain clarity on logos, text, and solid backgrounds. Gravure’s mechanical ink control also reduces sensitivity to minor variations between recycled material batches.
As a result, gravure is a practical option for laminated non-woven bags and rPET bags that require both visual consistency and long-term repeatability, ensuring that sustainability-driven material choices do not compromise print uniformity across large volumes.
Key Considerations Before Selecting Gravure Printing for Your Bags
Before choosing gravure printing, it helps to step back and look at how your bag project will actually run in production. Gravure delivers excellent results in the right conditions, but it is not a one-size-fits-all solution. The points below reflect the practical questions we usually discuss with buyers before confirming this printing method.
Artwork and Color Setup
Gravure works best when the artwork is stable and well-defined from the start. Because the image is engraved into a cylinder, late-stage design changes are costly and time-consuming.
If your bag design uses large solid areas, bold backgrounds, or precise brand colors, gravure offers strong advantages. At the same time, you should finalize color separations, logo size, and layout before moving into production. Projects that expect frequent revisions or seasonal redesigns may feel constrained by gravure’s setup structure.
Material Structure and Surface Treatment
Material choice plays a major role in gravure performance. Gravure printing relies on pressure-based ink transfer, which means smooth, sealed surfaces deliver the most consistent results. In practice, laminated materials perform far better than untreated fabrics. Before selecting gravure, it is important to confirm whether lamination is required and how it fits into your bag’s durability, cost, and sustainability goals.
Order Volume and Production Planning
Gravure becomes cost-effective when production volume is large enough to absorb the initial cylinder engraving cost. This method is commonly used for programs that involve tens of thousands of bags or repeat orders over time.
If it is a one-off promotion bag or a small trial run, gravure may not be the most economical option. You can choose flexographic printing for medium-volume projects and digital printing for small runs, pilot projects, or test launches. However, for large-volume or repeat programs, gravure printing becomes a practical option; the unit cost advantage improves significantly once production scales.
Sustainability and Ink Compliance
Many reusable shopping bag projects place strong emphasis on environmental responsibility. Gravure printing can support these goals when paired with appropriate ink systems and material choices. Inks for gravure often contain solvents, so it is important to confirm compliance with regional regulatory frameworks such as the European Union’s REACH regulation, which governs the use of chemical substances, and to consider VOC (volatile organic compound) requirements under frameworks such as those overseen by the U.S. Environmental Protection Agency (EPA).
When combined with laminated rPET or recycled substrates, gravure can deliver stable print quality without undermining sustainability targets. The key is aligning ink selection, drying performance, and material structure early in the planning stage.
Gravure Printing vs Flexographic Printing: Which Should You Choose?
Gravure printing and flexographic printing are the two most common methods used for reusable shopping bags, but they solve different production problems. The right choice depends less on print quality alone and more on how your project is structured—including order volume, material type, design stability, and long-term planning.
Instead of asking which method is “better,” it is more practical to ask which method fits your production reality. The comparison below highlights how gravure and flexographic printing differ in real manufacturing scenarios.
| Comparison Factor | Gravure Printing | Flexographic Printing |
| Best for order volume | Large-volume and repeat programs | Medium-volume and mixed orders |
| Setup cost | Higher upfront (engraved cylinder) | Lower upfront (printing plates) |
| Unit cost at scale | Lower as volume increases | Higher at very large volumes |
| Design flexibility | Limited after cylinder engraving | Higher, easier to revise artwork |
| Print consistency | Very stable across long runs | Good, but more sensitive to variation |
| Material suitability | Laminated films, laminated PP woven, laminated non-woven | Paper, non-laminated or lightly laminated materials |
| Repeat order accuracy | Excellent when reusing cylinders | May require recalibration |
| Typical use case | Long-term reusable bag programs | Promotional or seasonal bag projects |
If your reusable shopping bag project involves stable designs, laminated materials, and predictable repeat orders, gravure printing often provides the most reliable and cost-efficient solution over time. Its strength lies in consistency—once the process is set, results remain uniform across large quantities and future reorders.
Flexographic printing, on the other hand, offers greater flexibility. It works well when designs change frequently, volumes sit in the middle range, or when shorter lead times matter more than long-run efficiency. For many brands, flexo serves as a practical step before production volumes justify gravure.
How Gentle Packing Applies Gravure Printing in Custom Reusable Bags?
At Gentle Packing, we apply gravure printing selectively, based on how a bag program is structured rather than treating it as a default option. We align three key factors. First, the artwork must be stable, with colors and layouts finalized for cylinder engraving. Second, the material structure must support lamination, ensuring smooth surfaces for pressure-based ink transfer. Third, the order plan must justify scale, either through large initial volumes or repeat production over time. When these conditions align, gravure delivers consistent results with minimal adjustment.
We also consider downstream processes early in planning. Bags printed with gravure typically move directly into cutting, sewing, and assembly. By coordinating ink selection, drying performance, and lamination structure in advance, we ensure the printed surface remains stable throughout bag production and repeated use.
Conclusion
Gravure printing plays a well-defined role in reusable shopping bag manufacturing, especially for programs that rely on laminated materials, stable designs, and large or repeat production volumes. Its strength lies in mechanical ink control, pressure-based transfer, and long-term repeatability, which together support consistent color and image quality across extended runs and future reorders.
If you are evaluating gravure printing for a reusable bag program, we can help you decide whether it is the right fit—or whether another printing method makes more sense at your current stage. Please contact us and share your bag specifications, target quantities, and timeline with us. Our team will review your project and recommend a practical, cost-efficient solution for you.
