If you source laminated reusable bags, you have probably seen the same frustrations: logos that look slightly soft, colors that shift between lots, or ink that scuffs after real use. Lamination changes how ink sits, dries, and bonds, so a printing method that works on paper can fail on film. When you need stronger branding on pp woven bags and RPET bags, print performance becomes a production decision, not a design preference.
In this article, I will explain the material and lamination mechanics, show why gravure delivers more stable results, and help you choose the right printing approach for durability, consistency, and scale.
What is Gravure Printing and How Does it Transfer Ink?
Gravure printing is a high-precision printing process designed for consistent ink transfer on non-absorbent surfaces. In simple terms, it relies on an engraved metal cylinder to control exactly how much ink reaches the substrate. Unlike relief or surface-based printing methods, gravure places ink inside microscopic cells, not on raised areas.
At the core of the process is the gravure cylinder. Each cylinder is engraved with millions of tiny cells that vary in depth and size. These cells hold liquid ink. As the cylinder rotates through the ink pan, excess ink is wiped away by a doctor blade, leaving ink only inside the engraved cells. When the cylinder contacts the laminated surface, the ink transfers cleanly and evenly.
This transfer method differs fundamentally from flexographic or screen printing. Gravure does not push ink onto the material through compression. Instead, cell geometry determines ink volume before contact occurs. Ink delivery depends on engraving parameters and blade accuracy rather than printing pressure.
From a manufacturing perspective, gravure printing offers three structural advantages:
- Precise ink volume control at every point of the image
- Uniform ink laydown across large print areas
- Repeatable results across long production runs
Gravure inks are formulated to flow easily into engraved cells and release efficiently during contact. These inks typically dry through solvent or water evaporation rather than absorption into the material. This drying mechanism aligns with film-based and laminated substrates, where absorption plays little role.
What are Laminated Materials?
Laminated materials refer to substrates that combine a base fabric or film with an added surface layer to modify performance. In reusable bag production, lamination typically adds a thin polymer film to improve surface uniformity, strength, and resistance to moisture.

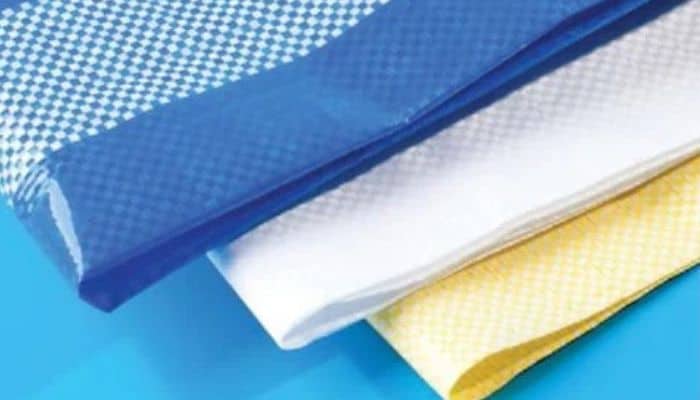

Structure of Laminated PP Woven Fabric
Laminated pp woven fabric consists of two clearly defined layers. The base layer is a woven polypropylene fabric made from flat tapes. This woven structure delivers load-bearing strength and tear resistance, which is why pp woven bags are widely used for heavy-duty applications. However, the woven surface alone is uneven and porous, making it unsuitable for detailed printing.
To address this, manufacturers apply a laminated film, usually polypropylene, through extrusion or adhesive bonding. The film fills surface gaps and creates a smooth outer layer. Printing occurs on this laminated surface, not directly on the woven tapes.
This structure introduces two important characteristics. First, the surface becomes non-absorbent, so ink must sit on top rather than soak in. Second, surface consistency improves across the bag, reducing visual distortion caused by the weave. Both factors strongly influence ink transfer behavior and drying control.

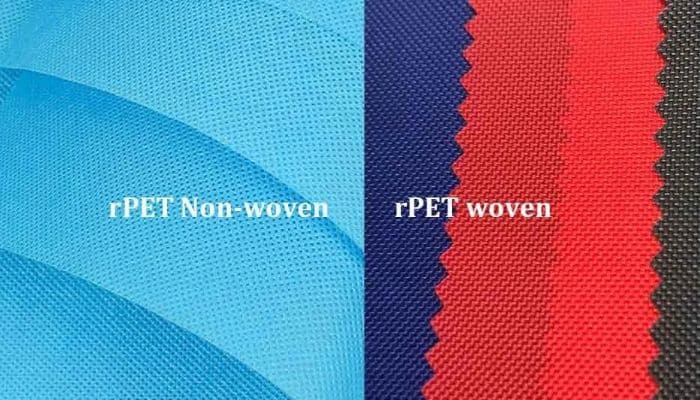

Material Characteristics of rPET Laminated Fabrics
Laminated rPET fabrics are built on recycled polyester, which introduces material characteristics that differ from virgin polymer-based substrates. Because rPET fibers originate from post-consumer plastics, such as recycled bottles, the base material naturally shows greater variation in fiber uniformity, molecular orientation, and surface energy compared with virgin PP woven materials.
This variability affects the raw fabric layer rather than the printed surface. rPET fibers can differ slightly in stiffness, elasticity, and texture from batch to batch, especially when recycled content ratios change. From a manufacturing perspective, these differences influence how the fabric behaves under tension, folding, and repeated use, rather than how ink transfers during printing.
In laminated rPET constructions, the base fabric primarily contributes structural strength and sustainability value, while the laminated layer defines surface behavior. This separation allows rPET laminated fabrics to achieve predictable printing performance despite natural variation in recycled materials.
At a material level, both laminated pp woven and laminated rpet share a key trait: printing occurs on a smooth, low-absorption surface created by lamination. That common characteristic is what reshapes printing behavior and sets the stage for understanding why lamination changes how ink performs in subsequent processes.
Why Lamination Changes Printing Behavior?
Lamination changes printing behavior because it changes what ink actually interacts with. Before lamination, ink meets fibers, yarn intersections, and open spaces within the material. After lamination, ink meets a continuous film designed to act as a surface layer. This difference may look subtle, but in printing terms, it completely reshapes how ink moves, dries, and stays in place.
From a manufacturing perspective, lamination transforms printing from a fiber-interaction problem into a surface-control problem. Ink transfer, drying, and adhesion all respond to this change.
Surface Smoothness and Ink Distribution
Unlaminated pp woven and RPET materials have uneven surfaces by nature. Woven tapes overlap, fibers intersect, and small gaps remain visible at a microscopic level. When ink lands on this type of surface, it follows the contours of the material. Ink gathers in low points and thins out on raised areas, which makes uniform coverage difficult, especially in solid colors or fine graphics.
Lamination modifies this condition by introducing a continuous film layer. The laminated surface reduces height variation and eliminates open gaps. Ink can spread across the surface more evenly rather than being pulled into structural low points. This change allows ink films to level before drying, which stabilizes coverage across the printed area.
In production, this smoother surface reduces the need to compensate for material texture. Printers can focus on controlling ink flow and registration rather than correcting surface-related defects.
Controlled Ink Absorption and Drying
Drying behavior also changes after lamination. On unlaminated materials, fibers absorb part of the ink. This absorption can speed up drying, but it also removes ink from the surface and introduces variability. Areas with denser fibers absorb more ink, while open areas absorb less, leading to uneven color strength.
A laminated surface limits this absorption. Ink stays on the surface and dries mainly through evaporation. While this requires more precise control of airflow and temperature, it creates a much more predictable drying process. Once parameters are set, drying behavior remains stable across the entire print area.
For manufacturers, it allows consistent color density without relying on excess ink to compensate for absorption losses. Over long production runs, this control helps maintain uniform results from the first bag to the last.
Improved Adhesion and Print Stability
Lamination changes adhesion by redefining where and how ink attaches to the material. On unlaminated substrates, ink relies on mechanical anchoring. It penetrates the fiber network or woven structure and locks in place as the ink dries. This type of adhesion depends heavily on fiber orientation, surface roughness, and material movement.
Once a laminated layer is applied, this anchoring mechanism no longer dominates. Ink no longer penetrates fibers or gaps. Instead, adhesion shifts to the interface between the ink layer and the laminated film. The bond forms through surface energy compatibility, wetting behavior, and curing interaction rather than physical entrapment.
This change alters the nature of print stability. Adhesion becomes a surface-controlled interaction instead of a structure-dependent one. As a result, ink attachment becomes more uniform across the print area and is less influenced by variations in the underlying fabric.
Why Gravure Printing Performs Better on Laminated PP Woven Bags and rPET Bags?
Gravure printing performs better on laminated pp woven bags, and rPET bags because its ink-transfer logic aligns closely with the surface conditions created by lamination. Once lamination introduces a smooth, low-absorption film, printing performance depends less on forcing ink into the material and more on controlling ink volume, release, and curing at the surface.
Strong Ink Adhesion
On laminated pp woven and RPET surfaces, adhesion depends on surface wetting and interfacial bonding rather than fiber penetration. Gravure printing supports this adhesion model because ink volume and release are predetermined by engraved cell geometry, not by printing pressure.
Each gravure cell delivers a controlled amount of ink that spreads evenly across the laminated film. Because the ink layer forms uniformly, it achieves consistent contact with the surface before curing begins. This controlled wetting reduces weak bonding zones that typically occur when ink is forced onto smooth films under pressure.
The adhesion becomes a function of surface energy compatibility and curing conditions rather than substrate irregularities. Gravure enables this by minimizing mechanical disturbance during transfer, which allows the ink to bond to the laminated surface as designed.
High Color Saturation and Clarity
Color performance on laminated materials depends on how evenly the ink sits on the surface. Laminated films do not absorb ink, so color density must come from controlled ink laydown rather than penetration. Gravure printing addresses this directly through engraved cell geometry.
Engraved cell depth and cell density determine how much ink reaches each area of the design. Deeper cells deliver more ink, while shallower cells deliver less, allowing color density to be controlled independently of the substrate. This mechanism prevents color dilution caused by absorption loss and reduces the need for over-inking.
Because ink laydown is consistent at the micro level, gravure maintains sharp edges and stable tone values. Fine lines remain defined, and solid areas retain uniform density. In laminated pp woven and RPET bag production, this clarity results from controlled ink volume rather than surface compensation.
Abrasion and Scratch Resistance
The laminated film acts as a protective surface that isolates printed graphics from direct contact with fibers, woven edges, and internal material movement. Compared with unlaminated substrates, this film absorbs friction more evenly and reduces direct mechanical stress on the ink layer.
However, the laminated layer alone does not guarantee abrasion resistance. How ink sits on this surface determines whether the protective effect of lamination is fully realized. If ink forms uneven films, weak zones develop where friction concentrates and wear accelerates.
Gravure printing supports abrasion resistance by matching its ink-transfer behavior to the laminated surface. Because ink volume is defined by engraved cell geometry rather than printing pressure, gravure lays down a uniform ink film across the laminated layer. This consistency prevents thin spots that are more vulnerable to scratching during handling and transport.
In addition, gravure ink cures evenly on laminated films. The ink layer remains continuous and cohesive, allowing it to move with the laminated surface instead of breaking under friction. This interaction reduces micro-cracking and surface scuffing that often appear when ink thickness varies.
Consistent Visual Performance Over Time
Long-term visual consistency depends on how stable the printing system remains over repeated production cycles. Once lamination creates a uniform surface, visual variation no longer comes mainly from the material itself. Instead, it comes from how consistently ink is delivered, transferred, and cured.
Gravure printing addresses this by fixing critical variables at the cylinder level. The engraving process defines ink volume, cell geometry, and transfer behavior, and these parameters remain unchanged throughout production. Once set, the printing system reproduces the same ink laydown pattern run after run, even when laminated material batches show minor variations.
For example, the IKEA blue laminated pp woven bag is commonly recognized for its consistent color and graphics across years of production. Despite being manufactured in very large volumes and across different production periods, the bag maintains the same blue tone, logo clarity, and overall appearance. This consistency is not accidental. It reflects a printing system designed around laminated surfaces and controlled ink transfer, rather than one that relies on material absorption or pressure-based correction.
In practical terms, gravure printing turns visual consistency into a system property instead of a manual adjustment task. When ink delivery and surface behavior remain stable, printed graphics hold their appearance not only within a single production run, but across repeated manufacturing cycles and long product lifespans.
Manufacturing Considerations for Gravure-Printed Laminated Bags
In gravure printing, performance on laminated bags is determined long before the press starts running. Once lamination defines a stable surface, the remaining challenge shifts to how consistently the printing process can be controlled over time, volume, and material variation. The following considerations reflect how to manage gravure printing in manufacturing environments.
Cylinder Engraving and Setup Requirements
The gravure cylinder is the foundation of the entire process. Unlike flexible plates or screens, the gravure cylinder permanently defines ink volume and image geometry through engraved cells. Cell depth, cell shape, and line density determine how much ink is delivered to each part of the design.
Cell depth typically ranges between 18 and 35 microns, depending on color density requirements and ink formulation. Deeper cells increase ink volume but also raise the risk of slow drying and surface smearing on non-absorbent films. Cell geometry must match the design intent. Solid color areas require consistent cell depth and uniform spacing to avoid mottling. Fine text and logos rely on tighter cell patterns with controlled opening sizes to prevent ink flooding at edges.
Also, the Doctor Blade setup is equally critical. Blade angle typically falls between 55 and 65 degrees, allowing excess ink to be removed without dragging ink out of the cells. Blade pressure must be high enough to clean the surface but low enough to avoid premature blade wear or cell damage. On laminated substrates, inconsistent blade pressure often shows up immediately as banding or density fluctuation.
Order Volume and Cost Efficiency
Gravure printing involves a different cost structure compared with flexible or screen-based printing methods. The main cost is not in running the press, but in cylinder engraving, which functions as the printing plate. Each color in a gravure design requires its own engraved cylinder, and once engraved, that cylinder defines ink volume and image geometry for the entire production life.
Another important factor is cylinder lifespan. Gravure cylinders are durable and can be reused across multiple production runs if properly maintained. In practice, gravure becomes cost-effective when production runs exceed tens of thousands of units, where the fixed setup cost can be amortized across large quantities.
Once production begins, gravure supports stable, high-speed output. Typical press speeds for laminated pp woven bags range from 120 to 250 meters per minute, depending on the ink system and drying capacity. These speeds remain consistent once ink viscosity and drying parameters are stabilized.
Because ink volume is fixed by cylinder engraving, operators do not rely on frequent adjustments during production. This reduces startup waste and limits mid-run corrections. Over long runs, cost efficiency improves not only through speed but also through reduced scrap and rework.
Quality Control in Mass Production
Quality control in gravure printing focuses on maintaining process stability rather than correcting defects after they appear. Key control points include ink viscosity monitoring, cylinder surface condition, drying temperature, and web tension. Because these variables affect ink behavior directly, even small deviations can influence the final appearance on laminated surfaces.
Laminated materials simplify quality control by reducing substrate-driven variation. The surface behaves consistently, so deviations are more likely to originate from process changes rather than material inconsistencies. This makes troubleshooting more direct and corrective actions more effective.
In practice, gravure printing defines quality standards at the system level. Once the team approves the parameters, operators monitor deviations instead of constantly recalibrating output. This approach supports long production cycles with minimal visual variation, even when production runs are spread across different time periods.
Gravure Printing vs. Flexographic Printing on Laminated Materials
When printing on composite polypropylene woven fabrics and recycled polyester films, flexographic printing often requires higher pressure to achieve sufficient ink transfer. This pressure can compress the plate, distort fine details, and introduce variability across the print width. Small changes in plate wear, mounting tension, or material thickness can affect ink laydown, especially in solid areas.
In real production environments, this sensitivity creates several practical constraints:
- Ink density can fluctuate across the print area due to pressure variation
- Plate compression may soften fine details or distort edges
- Setup windows become narrower, requiring closer operator monitoring
However, flexographic printing is best for laminated paper bags, as the paper base absorbs a portion of the ink and cushions pressure variations. This buffering effect reduces the visual impact of small changes in plate wear or press settings. Ink edges appear more stable, and solid areas are easier to control.
In comparison, gravure printing approaches laminated materials from a different technical foundation. Ink volume is fixed inside engraved cylinder cells before contact occurs, and ink transfer does not rely on compressing the substrate. This separation between ink metering and surface contact becomes a decisive advantage on laminated materials, where surface absorption does not assist ink stabilization.
Because ink delivery is defined mechanically, gravure printing remains less sensitive to pressure fluctuation, plate deformation, or minor material variation. On laminated pp woven and rpet bags, this allows ink to form a uniform surface film that dries predictably and maintains a consistent appearance over long production runs.
From a production standpoint, flexographic printing offers lower initial tooling costs and faster artwork changes, which makes it suitable for shorter runs or frequent design updates. Gravure, by contrast, prioritizes consistency over flexibility. On laminated materials, where surface behavior remains stable, gravure’s fixed ink delivery becomes a strength rather than a limitation.
Conclusion
Gravure printing performs better on laminated PP woven, and RPET materials because it aligns with how these materials actually behave in production. Lamination creates a smooth, non-absorbent surface where ink control depends on precise metering rather than pressure or substrate absorption. Gravure printing addresses this condition directly by fixing ink volume at the cylinder level, separating ink delivery from surface compression, and stabilizing drying through controlled evaporation.
If you want to source high-quality laminated bags, including laminated non woven bags, PP woven bags, paper bags, etc. Contact us to discuss your laminated bag project or request samples. At Gentle Packing, we manufacture laminated bags using gravure printing based on real production conditions. We review material construction, lamination specifications, and graphic requirements to ensure stable color, strong adhesion, and repeatable results.
